For compatible 2011-2025 Ford 6.7L Powerstroke trucks, this intercooler pipe kit replaces failure-prone plastic tubing with aluminum pipes and reinforced silicone couplers for dependable boost-air routing.

Powerstroke Intercooler Pipe Kit Fitment

• 2011-2025 Ford F250 F350 F450 6.7L PowerStroke V8 Diesel

Variant Title	Fitment
Upgraded Cold Side (2017+)	2017-2024 Ford F250 F350 F450 6.7L PowerStroke
Standard Cold Side (2017-2019)	2017-2019 Ford F250 F350 F450 6.7L PowerStroke

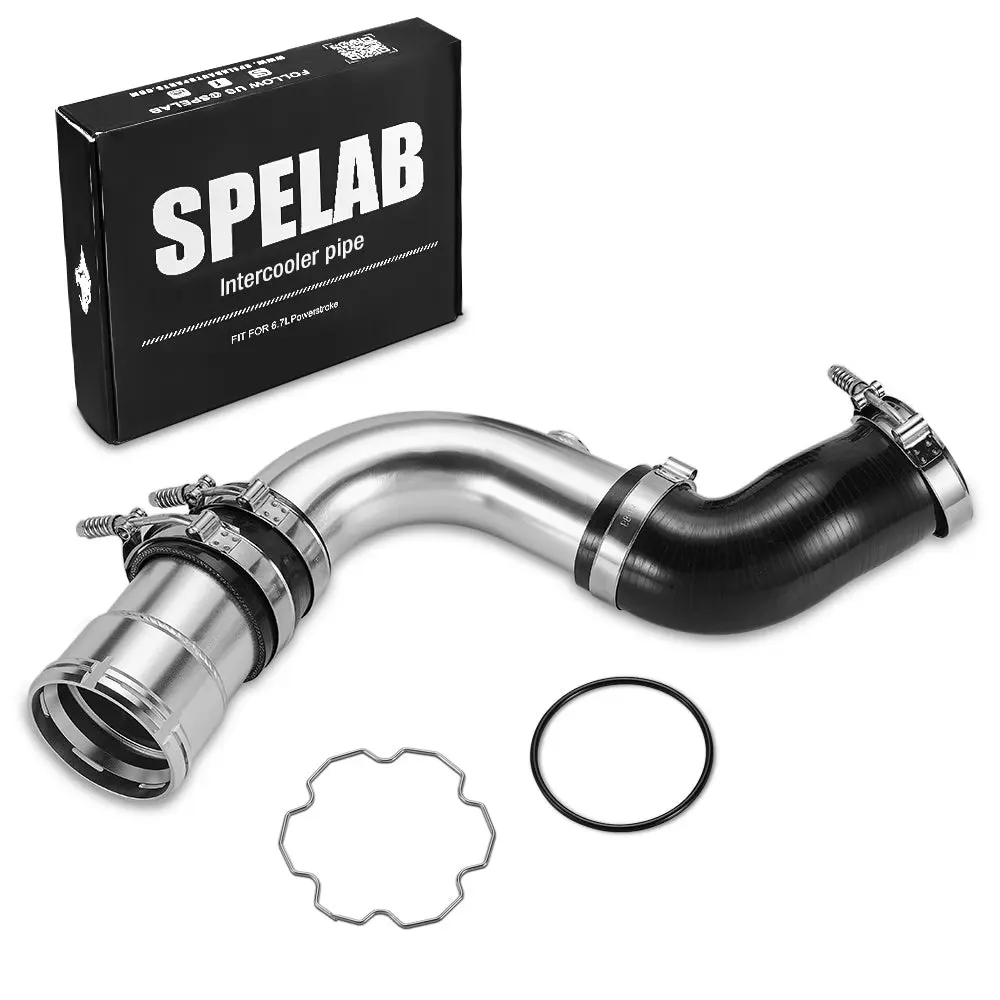

Cold Side (2011-2016)	2011-2016 Ford F250 F350 F450 6.7L PowerStroke

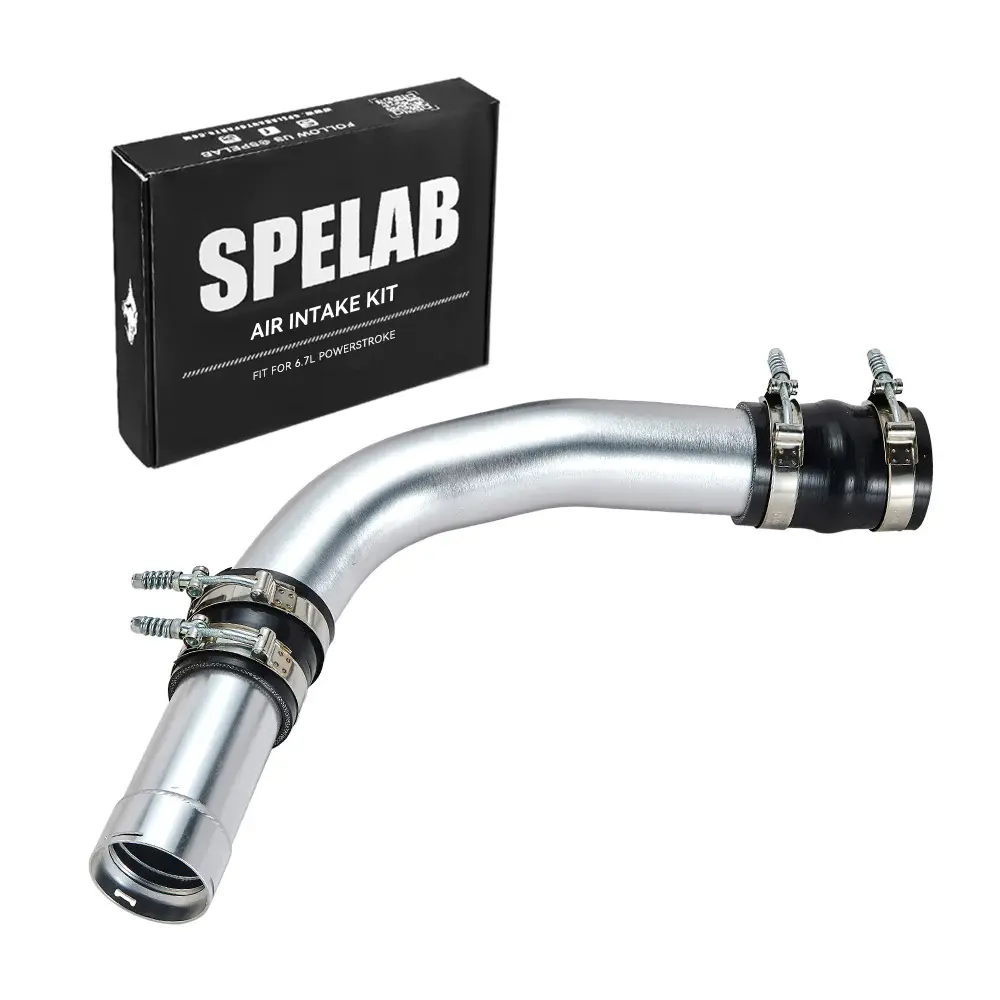

Hot Side (2011-2016)	2011-2016 Ford F250 F350 F450 6.7L PowerStroke

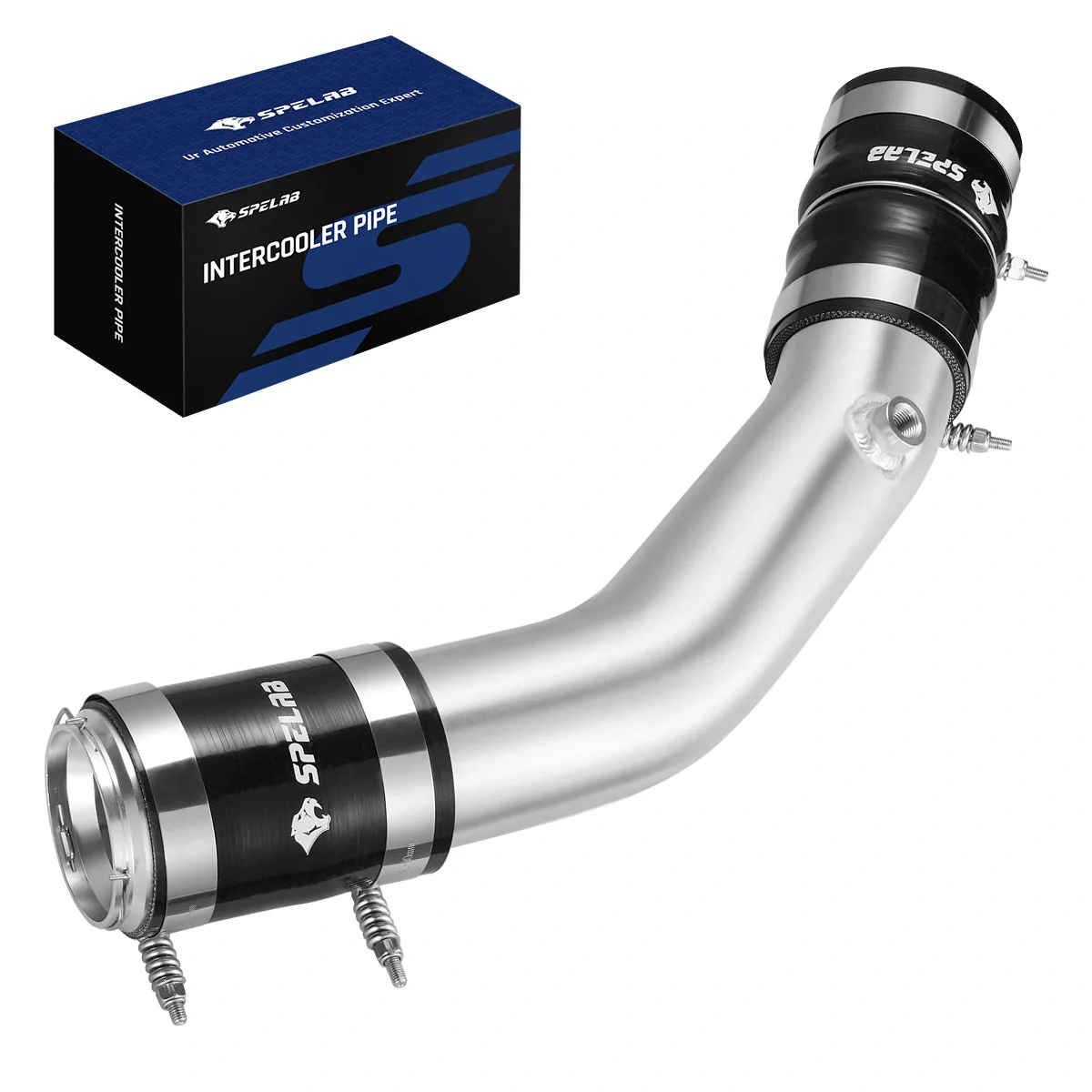

Upgraded Hot Side Standard Output (2011-2025)	2011-2022: Ford F-250/F-350/F-450/F-550 (All Models) 2023-2025: Ford F-250/F-350/F-450/F-550 (Standard Output Engine ONLY)
Upgraded Hot Side High Output (2023-2025)	2023-2025 Ford F-250/F-350/F-450/F-550 (High Output Engine ONLY)

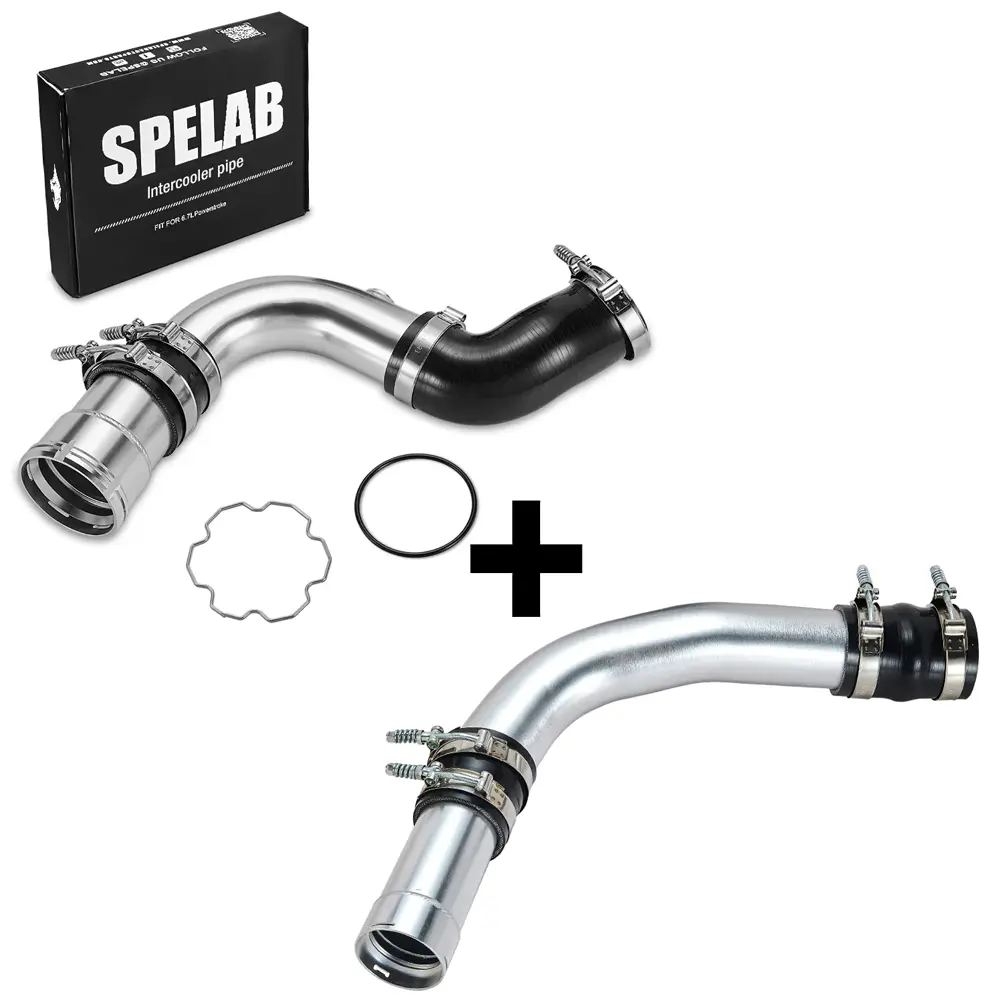

Hot+Cold Side Kit (2011-2016)	2011-2016 Ford F250 F350 F450 6.7L PowerStroke

Aluminum Intercooler Pipe Key Features

• Heavy-Duty Aluminum Construction
  Replaces failure-prone plastic OEM pipes with mandrel-bent, polished aluminum for increased durability and better heat tolerance.

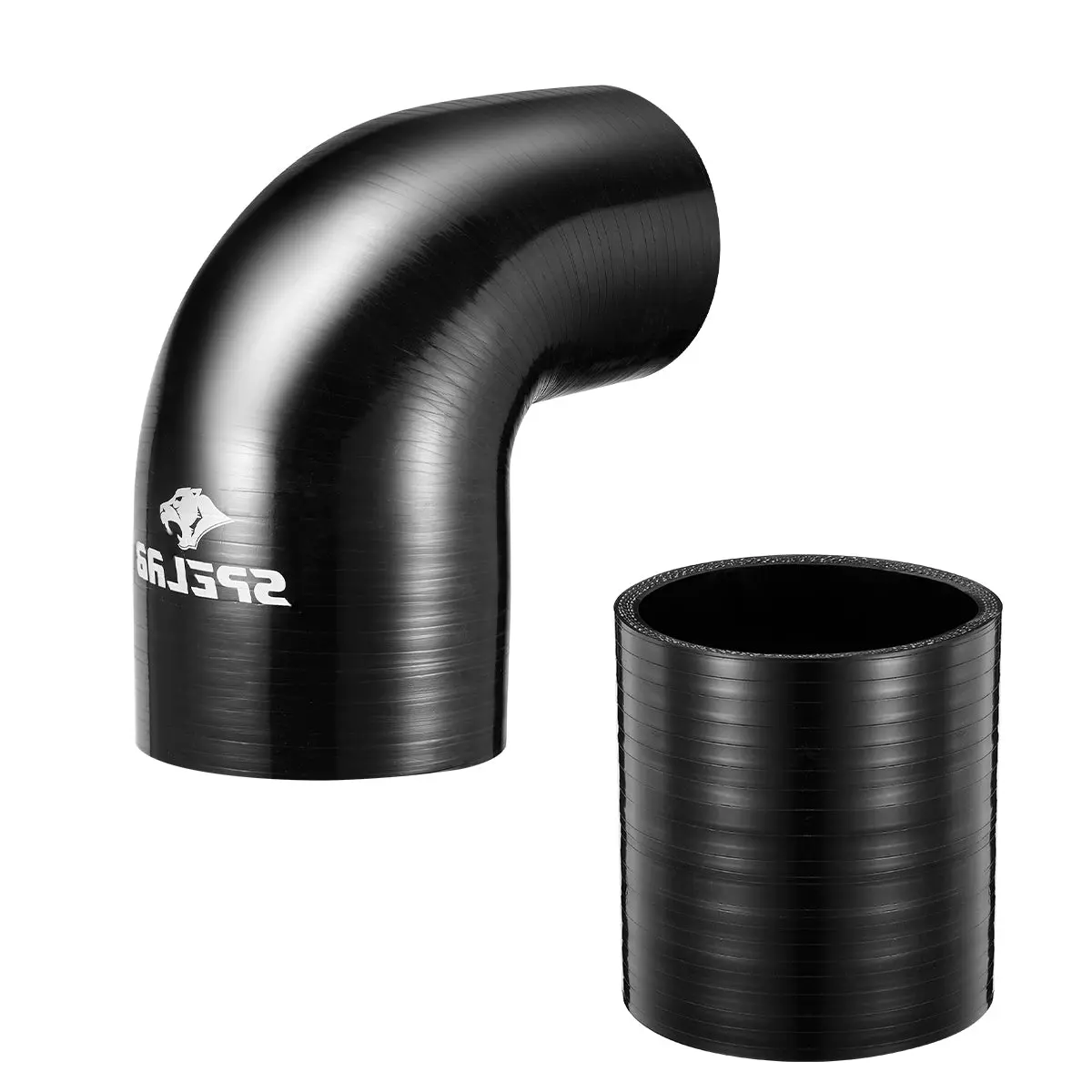

• Triple-Layer Reinforced Silicone Couplers
  High-temp, pressure-resistant couplers reduce vibration, absorb engine movement, and maintain seal integrity during hard acceleration or shifting.

• Improved Boost Pressure Handling
  Withstands extreme heat and pressure from the turbo system without deforming or bursting.

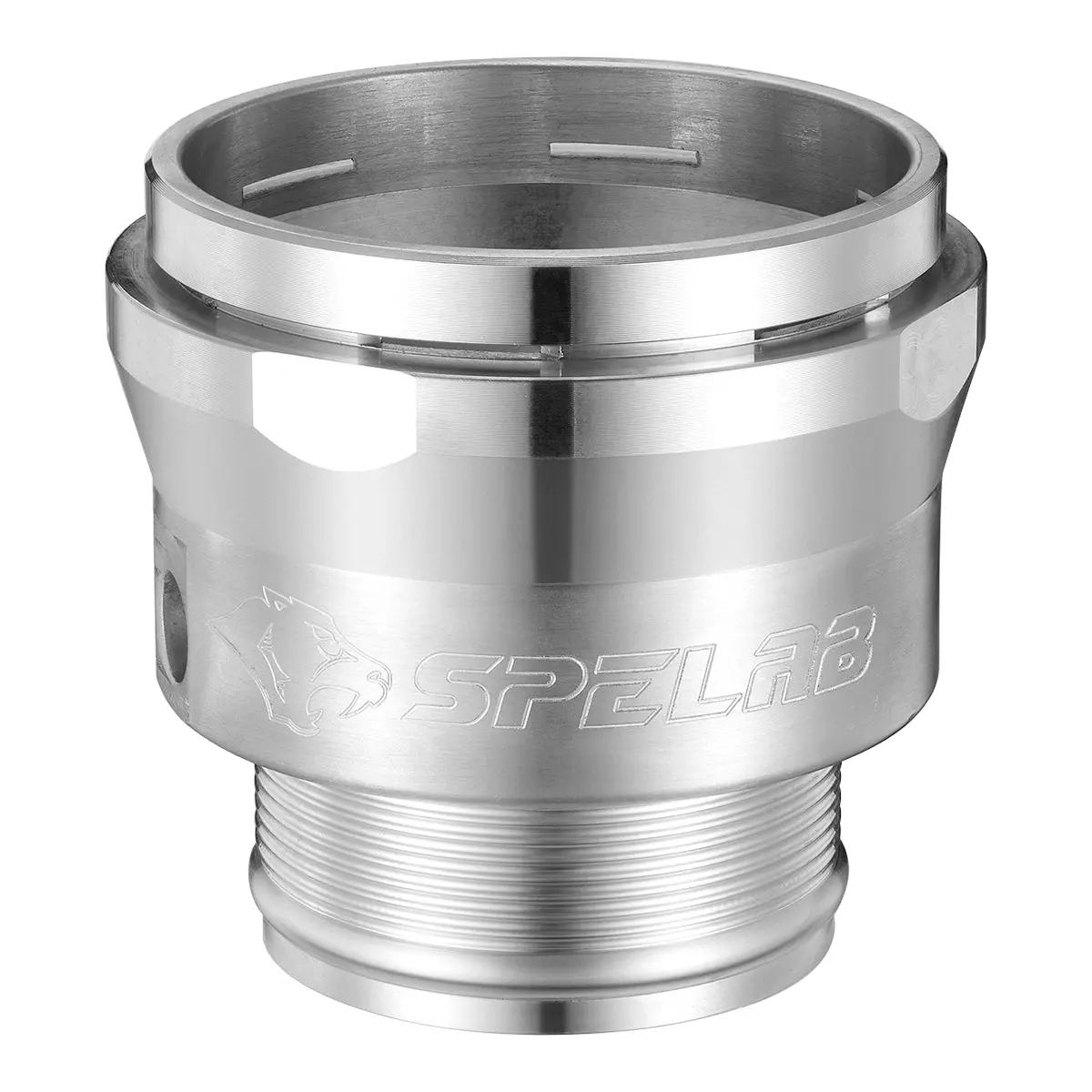

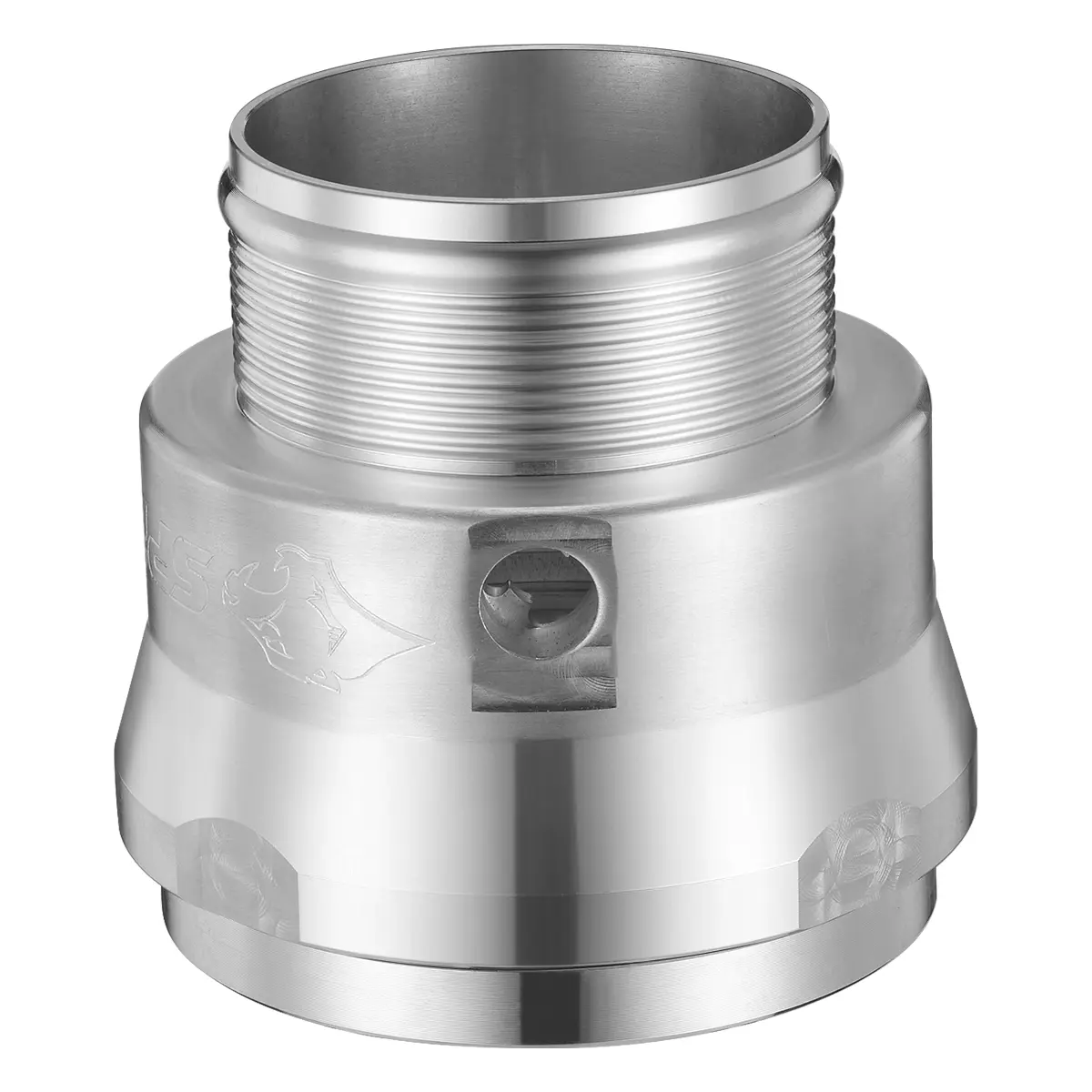

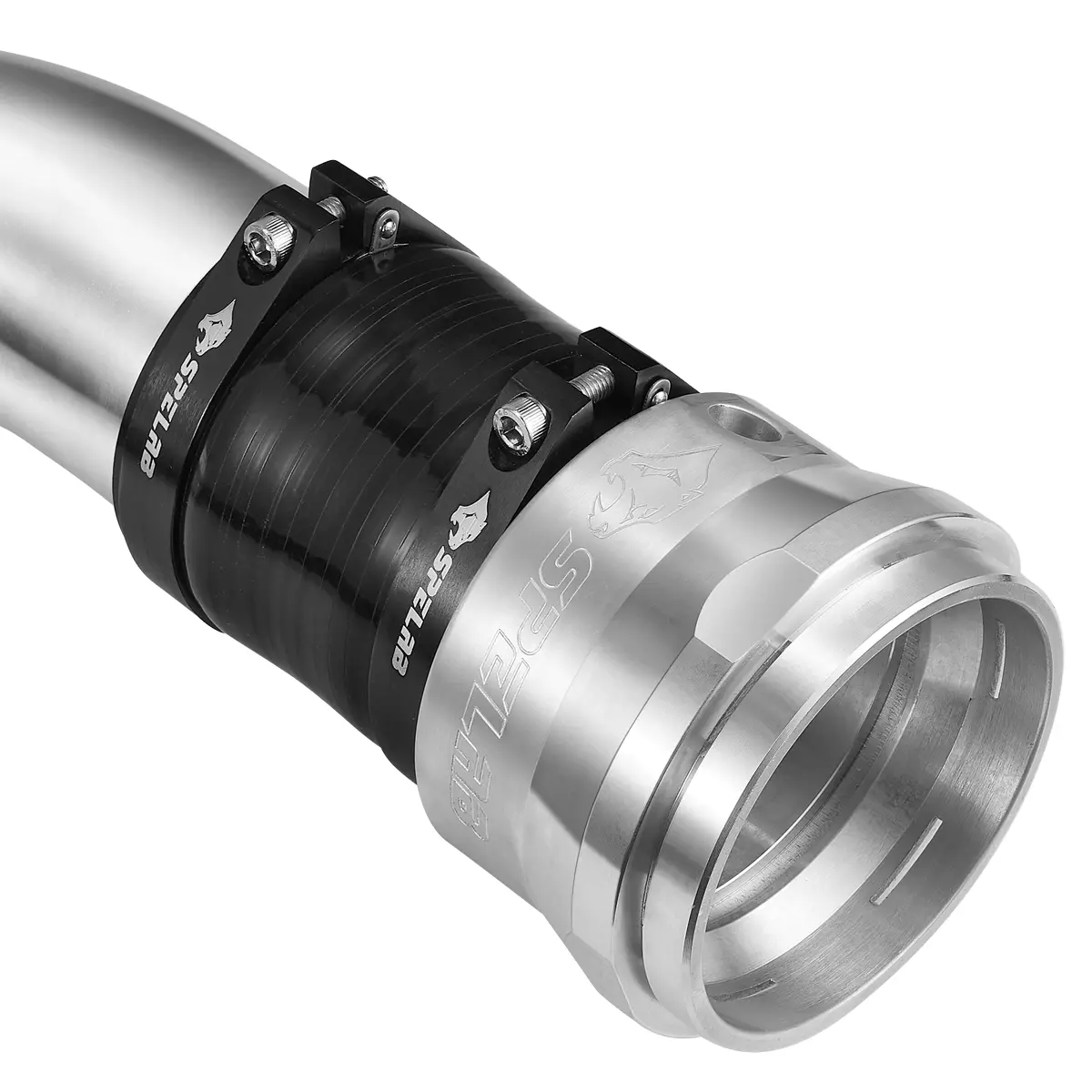

• Quick-Connect CNC Flange
  Precision-machined 6061 aluminum flange ensures OEM compatibility and quick installation using the stock emissions setup.

Product Specifications

Weight	2.02 kg
Material	Mandrel-Bent Aluminum (Pipes), Reinforced Silicone (Couplers)
Pipe Diameter	Lower Pipe: 3" Upper Pipe: 3.5"
Silicone Tube One	3" Diameter
Silicone Tube Two	3" to 3.5" Tapered
CNC Flange Material	6061-T6 Aluminum, Quick-Disconnect Design

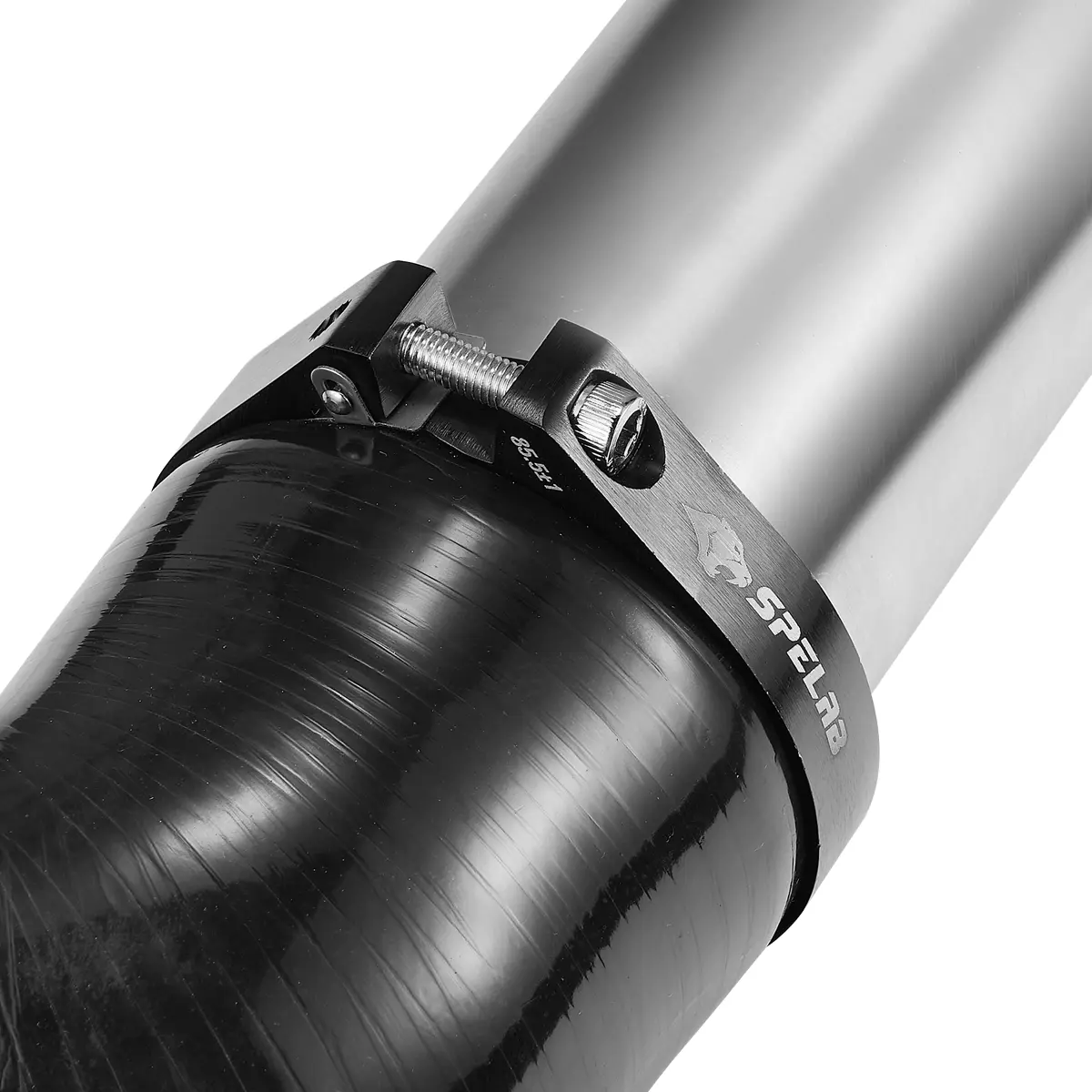

Clamps	4x Heavy-Duty T-Bolt Clamps
Surface Finish	Polished Aluminum with Black Silicone
Installation	Direct Fit – No Tuning Required

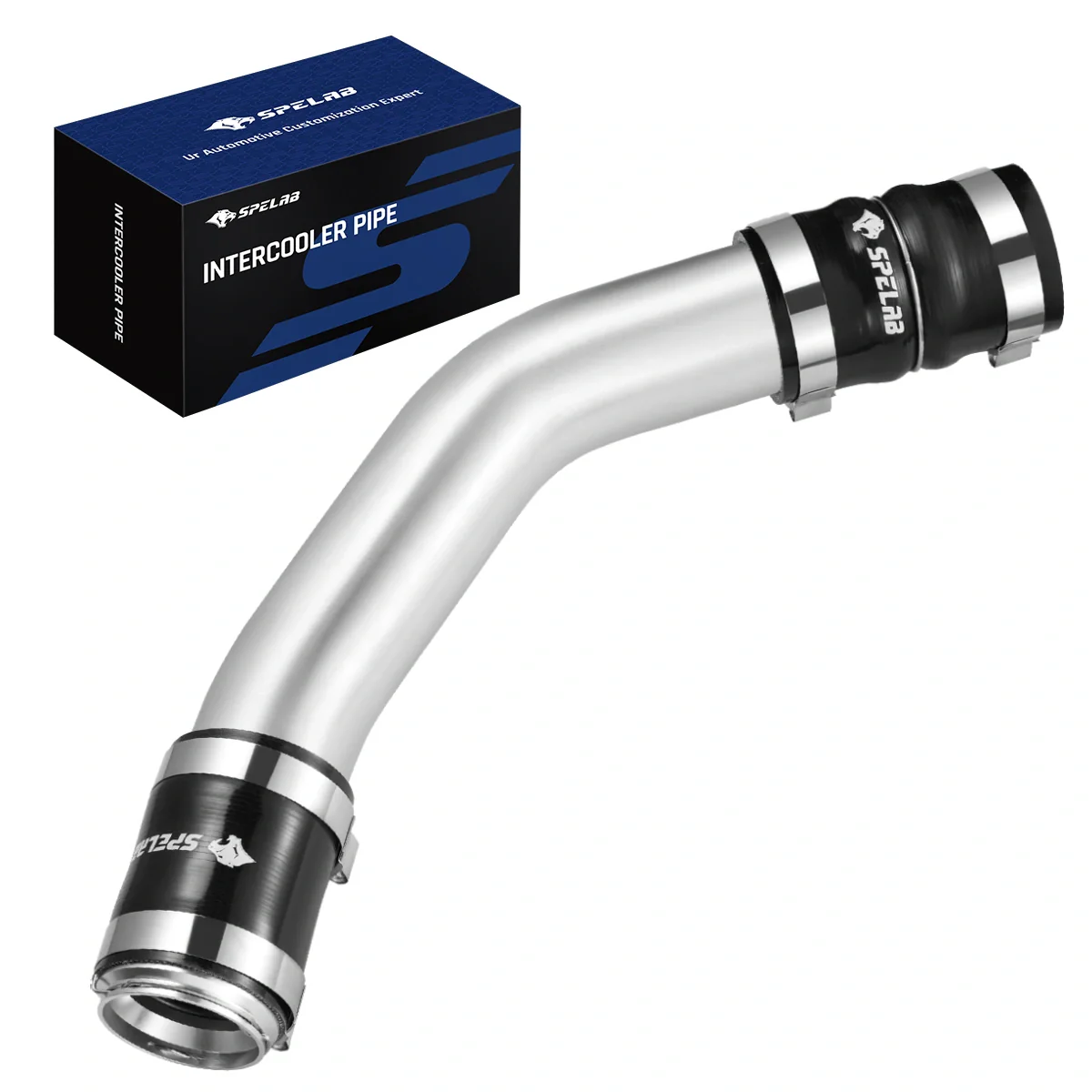

What's Included in the Kit

1X Silicone Intercooler Pipe w/ CNC Quick-Disconnect Flange

1X Silicone Intercooler Pipe

2X Silicone Tubes

4X T-Bolt Clamps

---tab FAQ---

Powerstroke Intercooler Pipe Kit FAQs

Q1: Will this intercooler pipe kit fit both hot and cold side?
A1: Yes, this kit includes components for both the cold side (2011–2024) and hot side (2011–2016) of the intercooler system. If your vehicle is 2017 or newer, the hot side may require an alternative configuration.

Q2: Do I need to tune my truck after installing this intercooler pipe kit?
A2: No tuning is required. This is a direct bolt-on upgrade that works with your stock or modified setup without ECU recalibration.

Q3: What are the benefits of upgrading from the OEM plastic pipes?
A3: The factory plastic pipes are prone to cracking and blowing under high boost or heat. This SPELAB aluminum and reinforced silicone upgrade offers superior durability, improved airflow, and greater reliability under pressure.

Q4: Is this kit compatible with emissions components and factory sensors?
A4: Yes, it features a CNC quick-disconnect flange designed to retain factory emissions equipment and sensor connections for seamless integration.

Q5: Can I install this kit myself, or do I need a mechanic?
A5: If you have basic mechanical knowledge and tools, this kit is DIY-friendly and can typically be installed in under 1–2 hours. Professional installation is recommended for optimal results.

Q6: Which option should I choose for a 2011-2016 6.7L Powerstroke?
A6: For 2011-2016 trucks, choose the side you are replacing. If your cold-side pipe is cracked, loose, or leaking boost, select Cold Side (2011-2016). If the hot-side pipe is the problem, select Hot Side (2011-2016). If both sides are old or you want to refresh the full charge-air pipe setup, select Hot+Cold Side Kit (2011-2016).

Q7: What is the difference between Standard Cold Side and Upgraded Cold Side?
A7: The Standard Cold Side (2017-2019) option is for buyers replacing the cold-side pipe on 2017-2019 trucks with a standard replacement-style setup. The Upgraded Cold Side (2017+) option is the stronger upgraded cold-side configuration for later 6.7L Powerstroke applications. Before ordering, match the option to your model year, pipe routing, and the part currently installed on your truck.

Q8: How do I know if I need the Standard Output or High Output hot-side pipe?
A8: For 2023-2025 trucks, confirm whether your 6.7L Powerstroke is the Standard Output or High Output engine before ordering. The Upgraded Hot Side Standard Output (2011-2025) option is not the same as the Upgraded Hot Side High Output (2023-2025) option. If you are unsure, verify by VIN, engine label, dealer build information, or your existing pipe layout before checkout.

Q9: What parts are included with the intercooler pipe kit?
A9: Included parts depend on the option selected, but the kit may include aluminum intercooler pipe sections, reinforced silicone couplers, silicone tubes, a CNC quick-disconnect flange, and heavy-duty T-bolt clamps. Check the selected style carefully because a cold-side-only option, hot-side-only option, and hot+cold side kit do not include the exact same parts.

Q10: What symptoms mean my factory intercooler pipe may need replacement?
A10: Common signs include boost leaks, oily residue around pipe connections, hissing under throttle, reduced power, poor throttle response, loose couplers, cracked plastic tubing, or a pipe that blows off under load. These symptoms can also come from boots, clamps, intercooler damage, or turbo-side issues, so inspect the full charge-air path before replacing parts.

Best For

• 2011-2016 Ford F-250, F-350, and F-450 6.7L Powerstroke applications
• 2017-2024 trucks using the compatible upgraded cold-side configuration
• 2011-2022 standard-output and 2023-2025 standard-output applications with the matching hot-side option
• 2023-2025 high-output engines using the compatible high-output hot-side option
• Owners replacing cracked or failure-prone factory plastic intercooler pipes
